In Qatar, runner tracks are one of the highly demanded wall frame solutions for Qatar Steel Industries Factory. In-wall framing made of steel, tracks are normally horizontal level compared to studs which are generally vertical plumb. The tracks can be fixed both to the floor and to the ceiling. The studs, which are embossed for strength, fit inside the tracks which are smooth. Holes can be made in the studs to pass pipes, conduit, or Romex.
To secure wall studs, structural track frame components are used as top and bottom runners. Structural tracks are also used as end support closures for joists at exterior or foundation walls, head, sill plates for wall openings and solid blocking. Tracks are normally ordered following the size and gauge of wall studs.

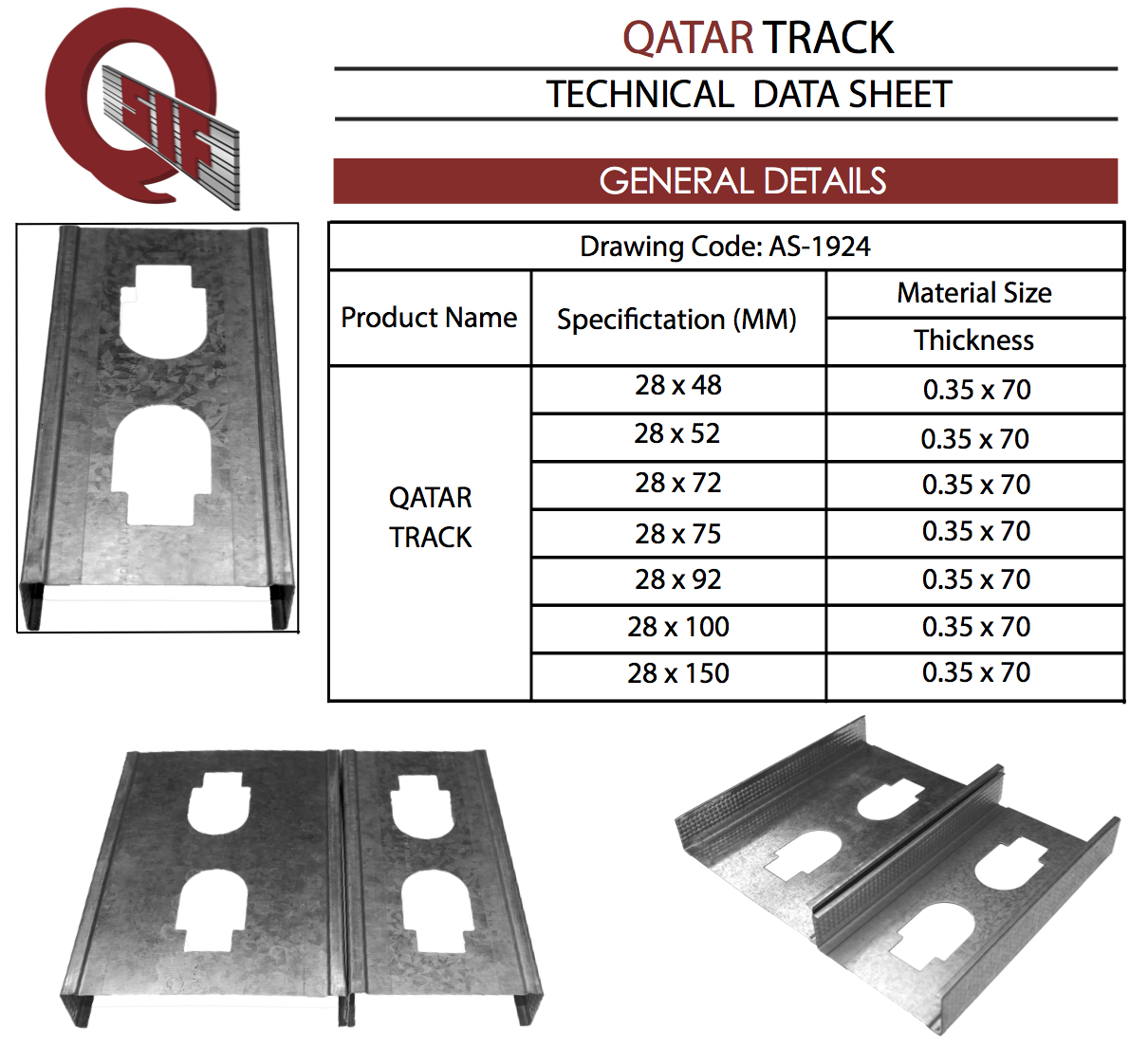

Size, Dimensions:
- Come in the dimension of 28 x 48 mm to 28 x 150 mm.
- A standard material thickness of 0.35 x 70 mm.
At QSIF Runners / Track come with the following features:
- This structural track is a U-shaped framing component that perfectly fits in vertical stud elements.
- Tracks are available to match all studs and depths.
- Structural tracks contribute to a quicker wall build, noncombustible systems, and protection from structural damage due to insect infiltration.
- Longer leg tracks are used for deflection purposes or to accommodate uneven or inconsistent floor or ceiling states.
- Easily insulated for hot and cold conditions which result in greatly reduced energy costs.
- Custom sizes, lengths, and coatings in order to fulfil your specific requirements.
- Noncombustible support for fire safety.
